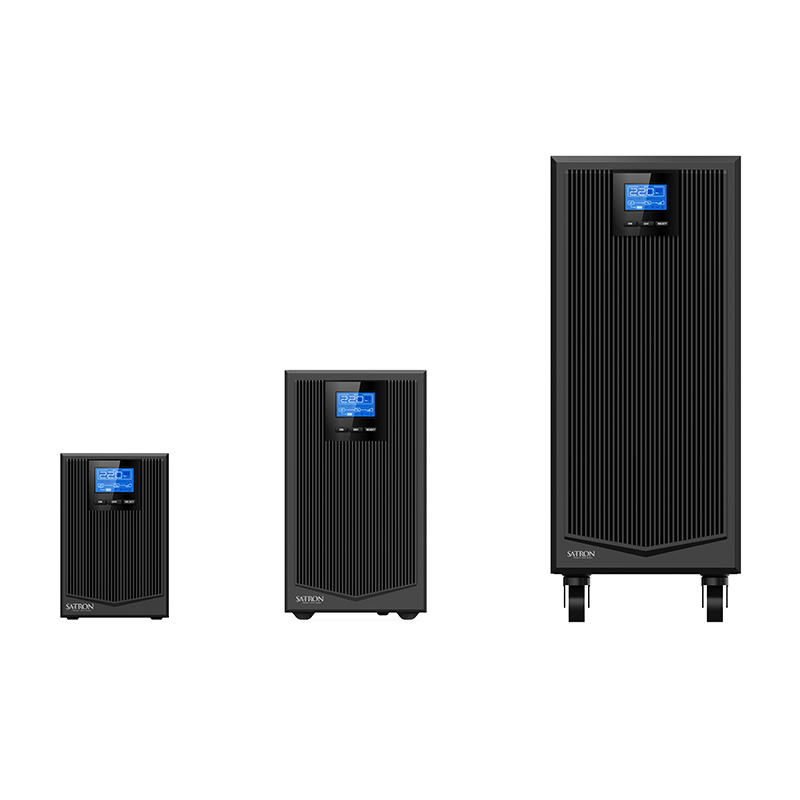

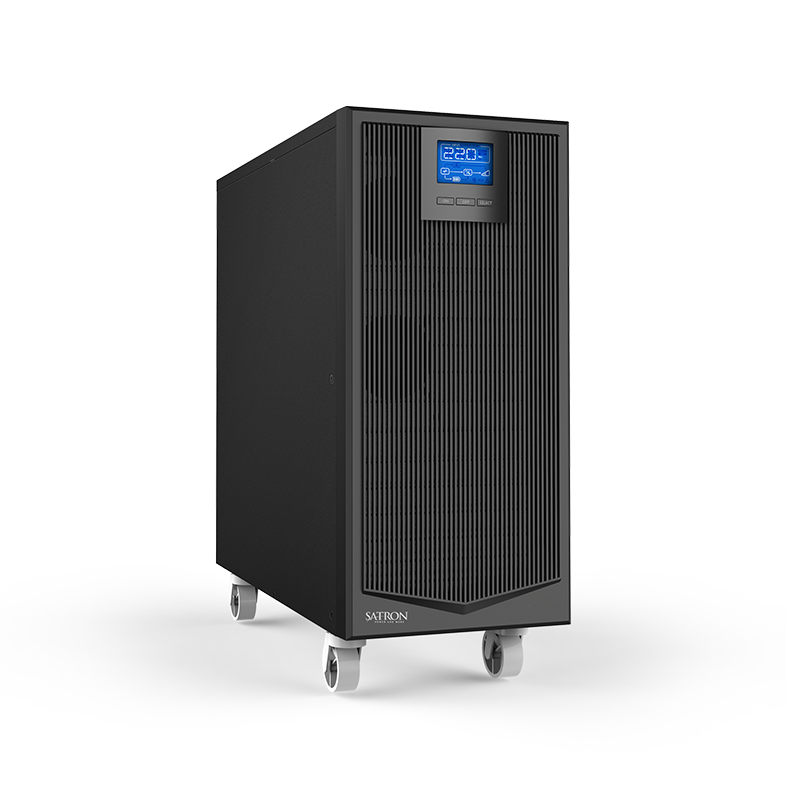

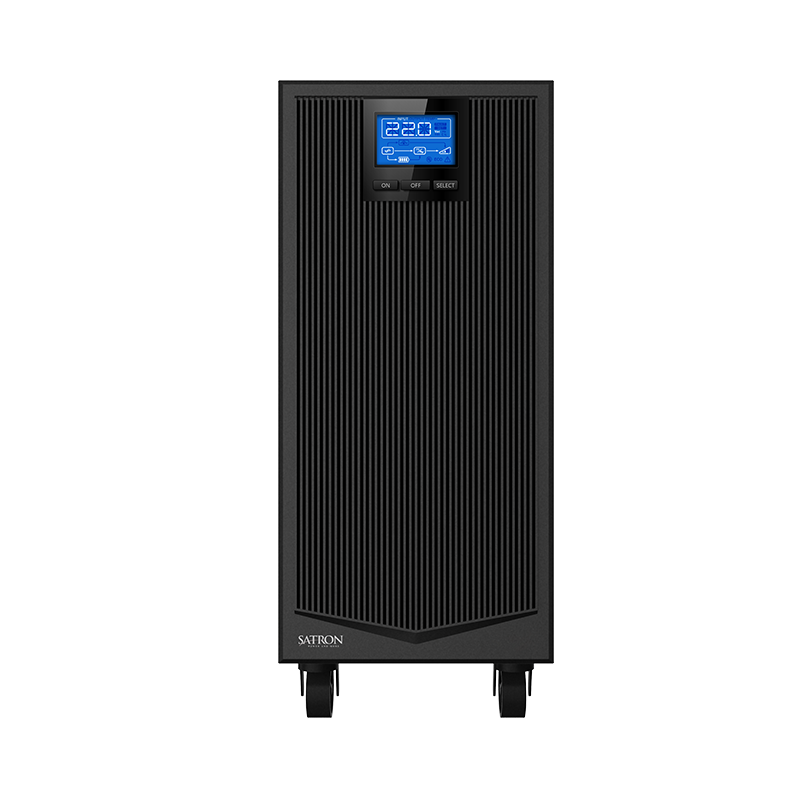

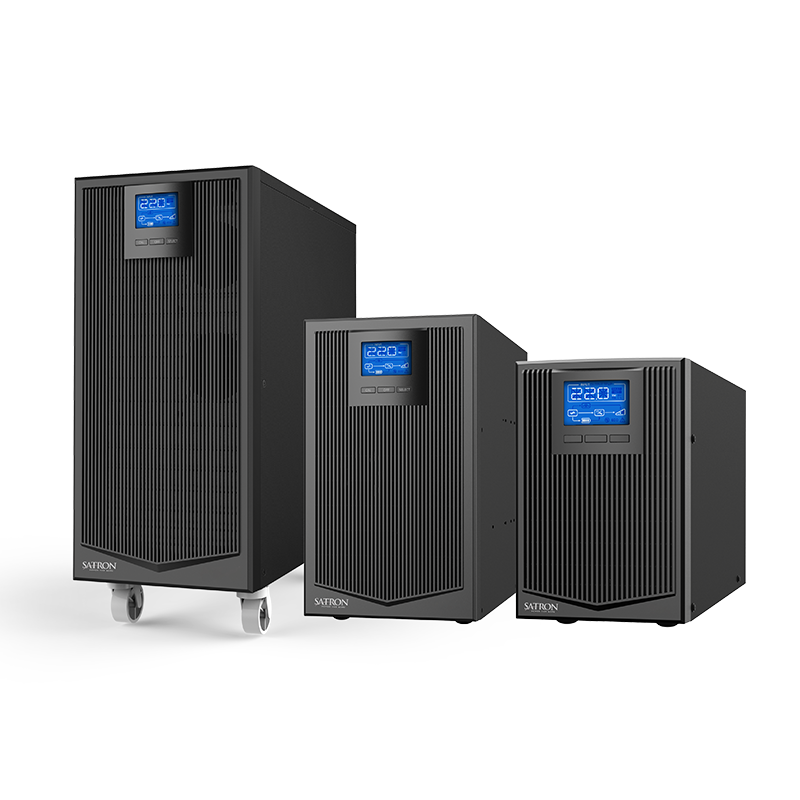

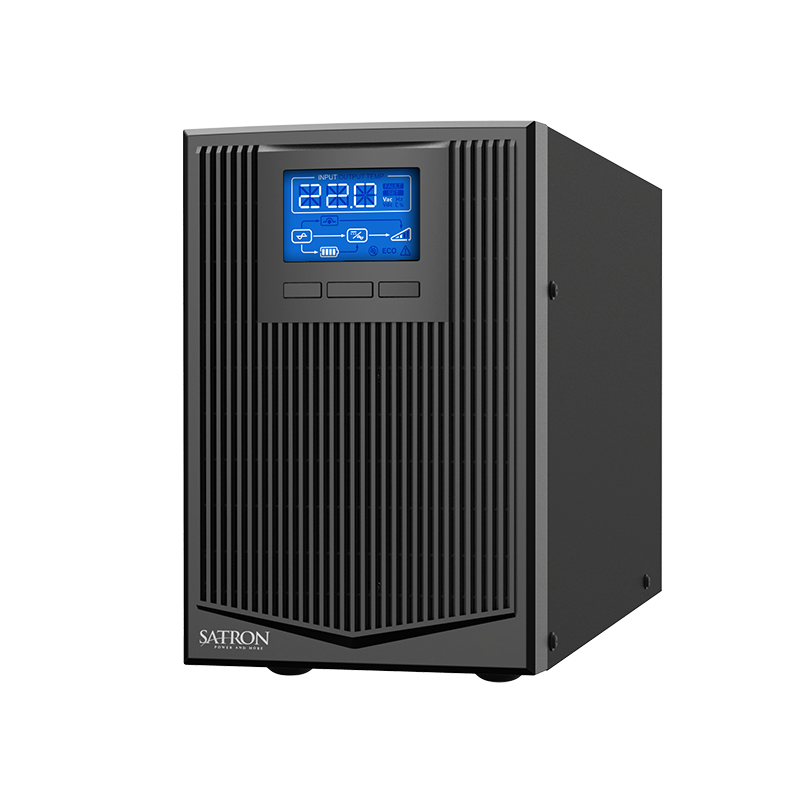

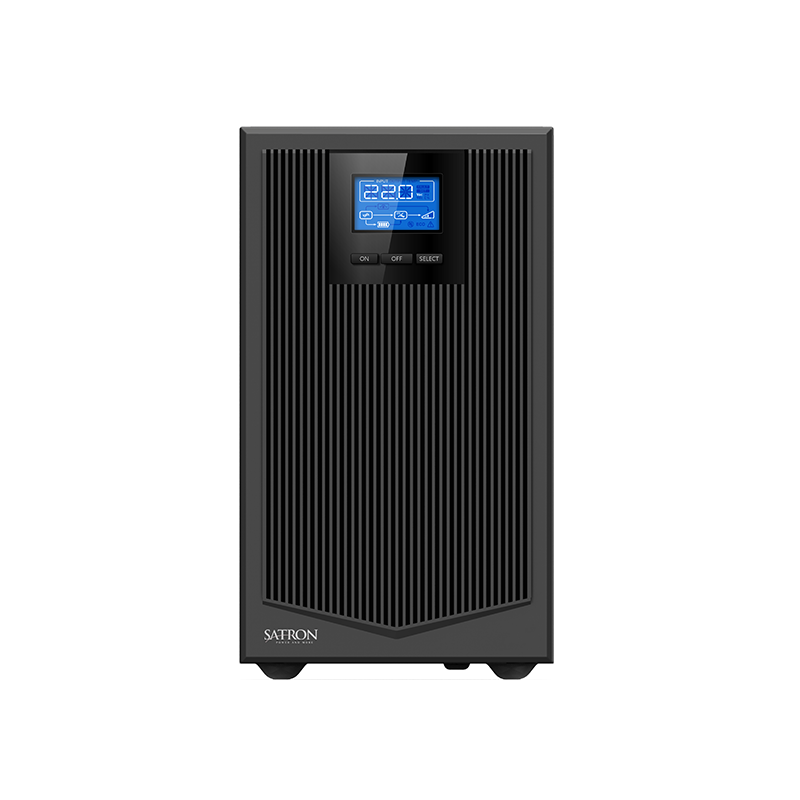

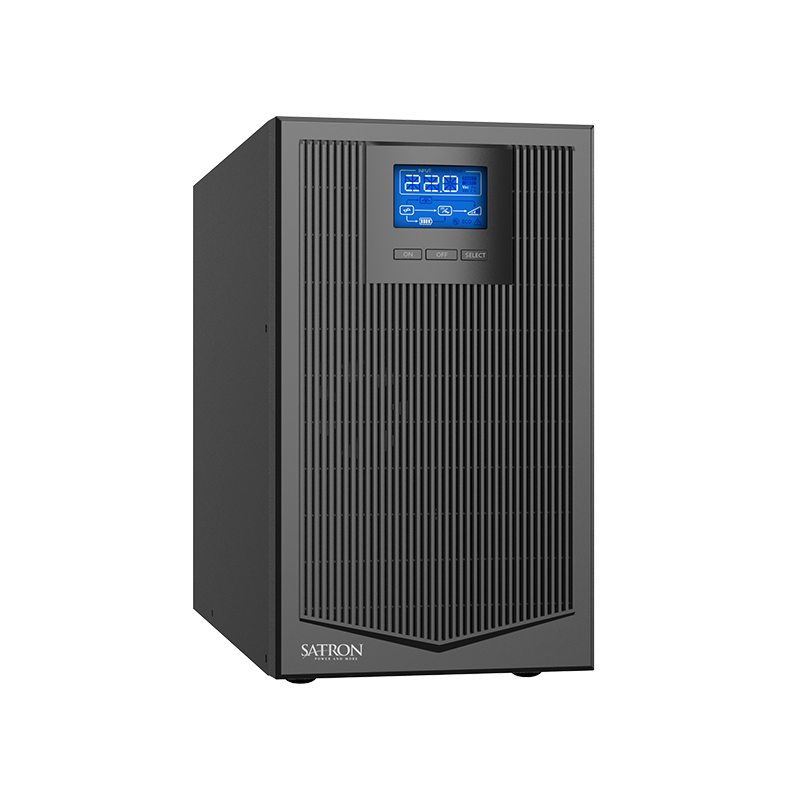

SM series
- Online UPS 1 to10kVA
- 3 level Technology
- Output PF up to 1.0
- AC/AC efficiency up to 95%
- High power density design
- Conformal coating for all PCB
High Reliable
- Wide input voltage range for higher grid adaptability.
- Full DSP control for top performance.
- Anti-corrosion resistant coating for all PCB boards.
- Generator compatible ensure the clean power for extend power outage.
- EPO function as standard for immediately remove power from connected load for emergency.
- Separate bypass, input and battery breaker for 6-10KVA big cabinet model.
Green Power
- 3 level technology for input power factor up to 0.996, Low THDi (< 4%).
- AC/AC efficiency up to 95% and ECO mode up to 98%, less TCO and more energy saving.
- Output power factor up to 1.0, more powerful to connect more critical loads.
Flexible Design
- Multiple sockets for 1-3KVA for global application.
- Output voltage and ECO mode are selectable via LCD.
- Input frequency range and Bypass enable by software.
- 1~8A charging current settable via software (6-10KVA).
- Batteries number settable via software (16/17/18/19/20 for 6-10kVA).Wheel for 6-10KVA which is easy for moving.
Optional
- SNMP/USB/dry contact slot card.
- Additional 4A charger for 1-3KVA long back up.
- Battery disconnection alarm.
- Charging voltage temperature compensation.
Main Characteristics
- VFI topology (online / double conversion) protection.
- Against all mains network problems.
- Extremely wide input voltage window of 120 VAC to 295 VAC without stress on the internal battery system and with a stable output voltage.
- ECO and frequency operating voltage possible.
- Expansion slot for SNMP, potential free contacts, remote display.
- Graphic LCD display with interactive multilingual user interface.
|
Model |
SM1000 |
SM2000 |
SM3000 |
SM6000 |
SM10000 |
|
|
Input |
||||||
|
Voltage (Vac) |
120~295 |
80~275 |
||||
|
Frequency (Hz) |
50/60± 10% (50/60Hz auto-sensing) |
|||||
|
Power Factor |
≤0.99 |
|||||
|
THDi at full linear load |
<4% |
|||||
|
Output |
||||||
|
Capacity (VA) |
1000 |
2000 |
3000 |
6000 |
10000 |
|
|
AC/AC Efficiency (Max.) |
92% |
93% |
94% |
95% |
95% |
|
|
Power Factor |
0.9 (1.0 optional) |
|||||
|
Voltage (Vac) |
208/220/230/240±1% (selectable on display panel) |
|||||
|
Frequency (Hz |
50/60±0.2% (battery mode) |
|||||
|
THDv |
THD<2% (linear load);THD<5% (nonlinear load) |
THD<1% (linear load);THD<4% (nonlinear load) |
||||
|
Overload* |
101%~130% load for 1 min, 131%~150% load for 1s, above 150% load for 200ms |
101~105% Long run, 106~130% load for 10mins, 131~150% 30s, over 150% 500ms |
||||
|
Transfer Time |
0 |
|||||
|
Current Crest Ratio |
3:1 |
|||||
|
Short Circuit Response |
Short circuit proof ( 3 x In for 100 ms ) |
|||||
|
Battery |
||||||
|
Voltage (VDC) |
24 |
48 |
72 |
192~240 |
||
|
Battery No. |
2X9Ah |
4X9Ah |
6X9Ah |
16X7Ah |
16X9Ah |
|
|
Battery Type. |
VRLA – Valve Regulated Lead Acid |
|||||
|
Charger Current (A) Max. |
1/4 |
1~8( Adjustable) |
||||
|
Charging time h ( to 90% ) |
5h |
|||||
|
Battery Management |
Exhaustive discharge protection / Protection against excess load Automatic battery test (daily, weekly, monthly) |
|||||
|
Communication |
||||||
|
Communication Interface |
RS232+USB (RS485, Dry contact and SNMP optional) |
|||||
|
User interface / failure indication |
3 LED’s with traffic light display, detailed indication via LCD display (acoustic/visual) (alarms: at mains failure, overload, battery charging, battery replacement, fan fault data logger – with clear text display incl. Date and time history) |
|||||
|
LCD Display |
AC input & output voltage, frequency, Load level, Battery level, Temperature, AC mode, Battery mode, Bypass mode, and Fault |
|||||
|
Protection / Alarm |
||||||
|
Protection |
Low battery, overload, short-circuit and over temperature, etc. |
|||||
|
Alarms |
Low battery, abnormal AC input, UPS failure, etc. |
|||||
|
General Data |
||||||
|
Audible Noise dB ( 1 m distance ) |
<45 |
<48 |
<52 |
<55 |
||
|
Operation Temperature ºC |
-5 to 40 |
|||||
|
Relative Humidity |
0 to 95% No Condensation |
|||||
|
Operation Altitude |
Up to 1000 m @ nominal load |
|||||
|
Regulatory Approvals |
CE, IEC62040-1,IEC62040-2 |
|||||
|
Dimension ( WxDxH ) mm |
145×360×225 |
190×400×330 |
230×502×553 |
|||
|
Weight ( Kg ) |
9.2 |
17.7 |
22.9 |
54.5 |
56.2 |
|
- Specification is subject to change without prior notice.
- *Condition Comply.
