SMR series

  1. Home
  2. Single Phase UPS
download Brochure
  • 3 level Technology.

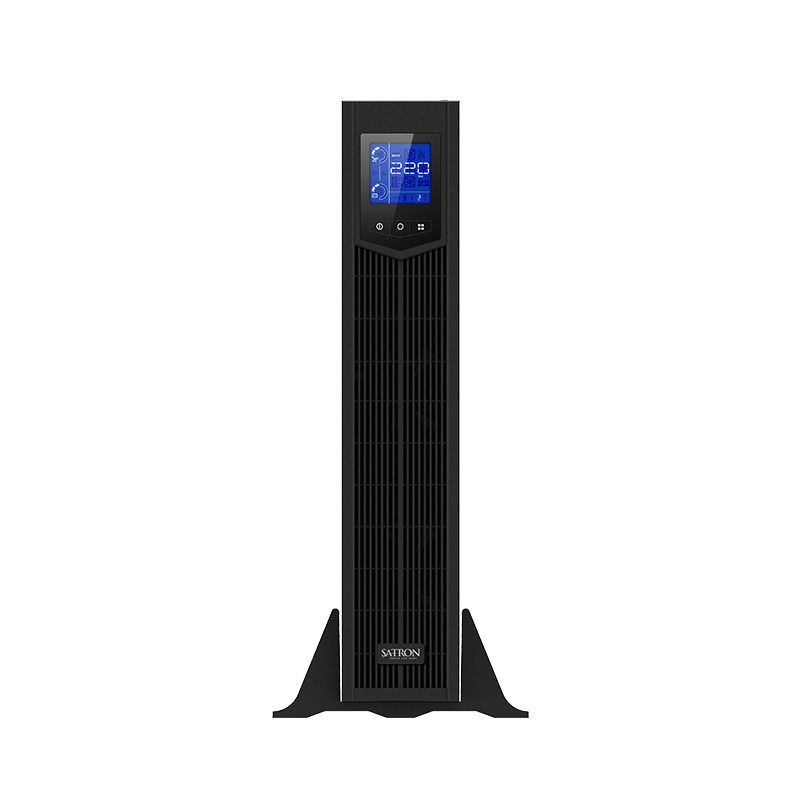

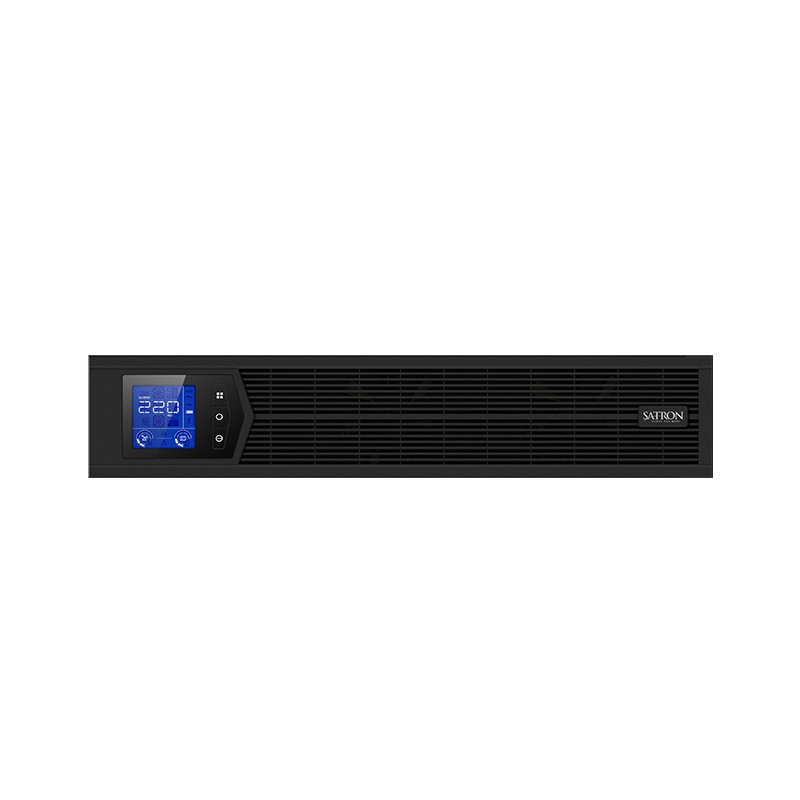

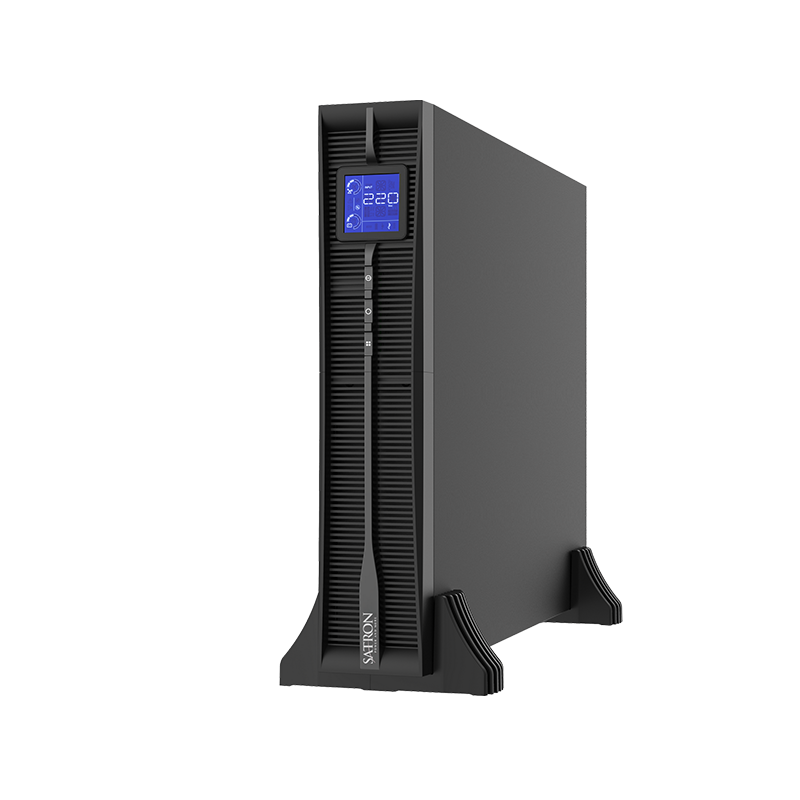

  • Rack and tower design.
  • Output PF up to 1.0.
  • AC/AC efficiency up to 93.5% for 1,2 and 3KVA.
  • AC/AC efficiency up to 95.5% for 6 and 10KVA.
  • Hot-Swappable Battery Design.
  • Conformal coating for all PCB.

High Reliable

  • Wide input voltage range for higher grid adaptability.
  • Full DSP control for top performance.
  • Anti-corrosion resistant coating for all PCB boards.
  • Generator compatible ensure the clean power for extend power outage.
  • EPO function as standard for immediately remove power from connected load for emergency.
  • Separate bypass, input and battery breaker for 6-10KVA big cabinet model.

Green Power

  • 3 level technology for input power factor up to 0.996, Low THDi (< 4%).
  • AC/AC efficiency up to 95% and ECO mode up to 98%, less TCO and more energy saving.
  • Output power factor up to 1.0, more powerful to connect more critical loads.

Flexible Design

  • Multiple sockets for 1-3KVA for global application.
  • Output voltage and ECO mode are selectable via LCD.
  • Input frequency range and Bypass enable by software.
  • 1~8A charging current settable via software (6-10KVA).
  • Batteries number settable via software (16/17/18/19/20 for 6-10kVA).
  • Wheel for 6-10KVA which is easy for moving.

Optional

  • SNMP/USB/dry contact slot card.
  • Additional 4A charger for 1-3KVA long back up.
  • Battery disconnection alarm.
  • Charging voltage temperature compensation.

Main Characteristics :

  • VFI topology (online / double conversion) protection.
  • Against all mains network problems.
  • Extremely wide input voltage window of 120 VAC to 295 VAC without stress on the internal battery system and with a stable output voltage.
  • ECO and frequency operating voltage possible.
  • Expansion slot for SNMP, potential free contacts, remote display.
  • Graphic LCD display with interactive multilingual user interface.

Technical Specifications

Model

SMR1000

SMR2000

SMR3000

SMR6000

SMR10000

Input

Voltage (Vac)

120~295

80~275

Frequency (Hz)

50/60± 10% (50/60Hz auto-sensing)

Power Factor

≤0.99

THDi at full linear load

<4%

Output

Capacity (VA)

1000

2000

3000

6000

10000

AC/AC Efficiency (Max.)

91.1%

92.5%

93.5%

95.5%

95.5%

Power Factor

0.9 (1.0 optional)

Voltage (Vac)

208/220/230/240±1% (selectable on display panel)

Frequency (Hz

50/60±0.2% (battery mode)

THDv

THD<2% (linear load);THD<5% (nonlinear load)

THD<1% (linear load);THD<4% (nonlinear load)

Overload*

101%~130% load for 1 min, 131%~150% load for 1s, above 150% load for 200ms

101~105% Long run, 106~130% load for 10mins, 131~150% 30s over 150% 500ms

Transfer Time

0

Current Crest Ratio

3:1

Battery

Voltage  (VDC)

36

48

72

144~240

Battery No.

3X7Ah

4X9Ah

6X9Ah

External 16 to 20

Battery Type.

VRLA – Valve Regulated Lead Acid

Charger Current (A) Max.

1/4

1~8( Adjustable)

Charging time h ( to 90% )

5h

Battery Management

Exhaustive discharge protection / Protection against excess load Automatic battery test (daily, weekly, monthly)

Communication

Communication Interface

RS232+USB (RS485, Dry contact and SNMP optional)

User interface / failure indication

3 LED’s with traffic light display, detailed indication via LCD display (acoustic/visual)

(alarms: at mains failure, overload, battery charging, battery replacement, fan fault data logger – with clear text display incl. Date and time history)

LCD Display

AC input & output voltage, frequency, Load level, Battery level, Temperature, AC mode, Battery mode, Bypass mode, and Fault

Protection / Alarm

Protection

Low battery, overload, short-circuit and over temperature, etc.

Alarms

Low battery, abnormal AC input, UPS failure, etc.

General Data

Audible Noise dB ( 1 m distance )

<50

<55

Operation Temperature ºC

-5 to 40

Relative Humidity

0 to 95% No Condensation

Operation Altitude

Up to 1000 m @ nominal load

Regulatory Approvals

CE, IEC62040-1,IEC62040-2

Dimension ( WxDxH ) mm

438×420×87

438×570×87

438×500×86(2U)

Weight ( Kg )

13.2

19.9

24.8

10.6 WOB

12.2 WOB



  • Specification is subject to change without prior notice.
  • *Condition Comply.
  • WOB : Without Batteries
