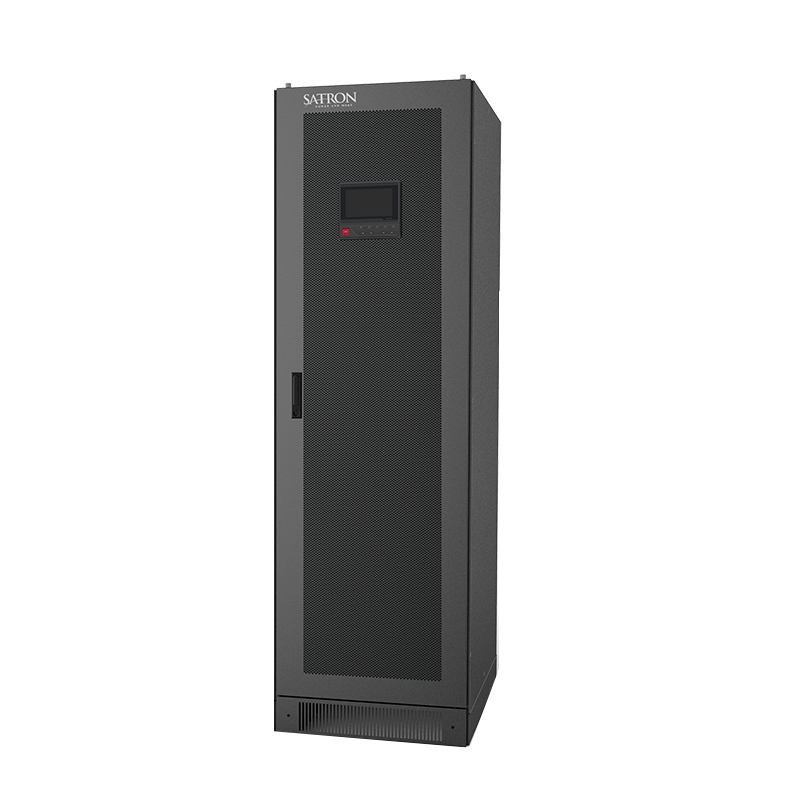

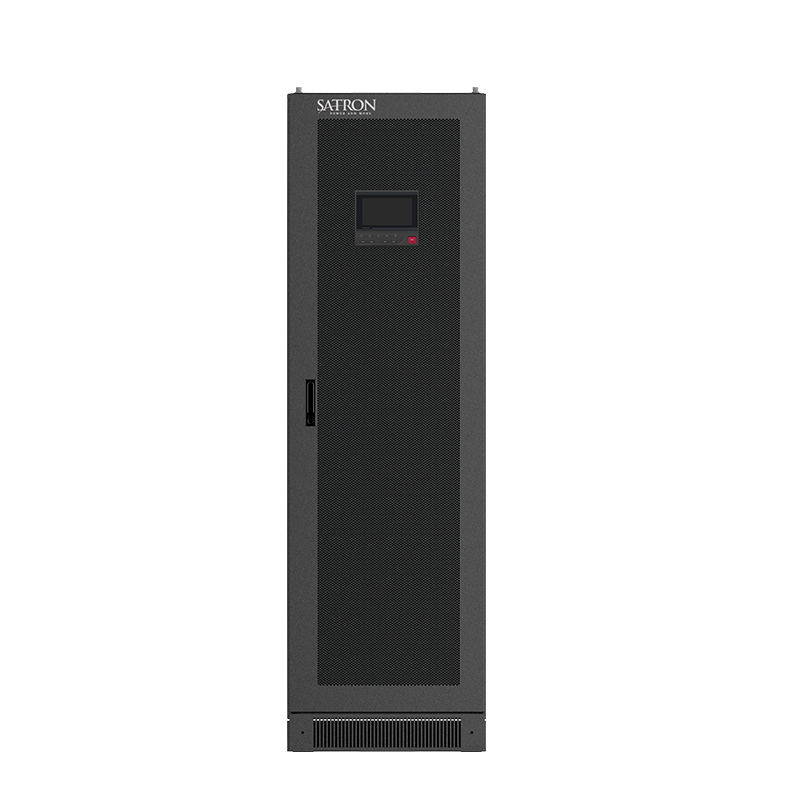

CELTA Pro CP1-CP2
Highlights
- 3 Level Technology
- All Module Hot-swappable Design
- Power Factor 1 (kVA=kW)
- Power Module 30KVA/30KW
- High Efficiency 97%
- Fault Trace Management
- 8 System Parallel for CP30-120KVA
- 4 System Parallel for CP50-600KVA
- Dual system control card
High Reliability

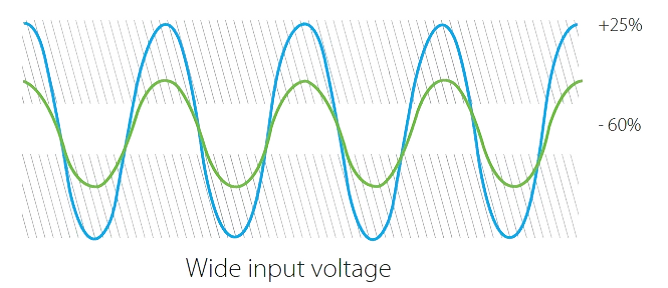

- Wide input voltage range -60%~+25% with high grid adaptability.
- High overload capacity on inverter and bypass.
- All module hot-swappable design ensures uninterrupted operations during maintenance and easy for module replacement.
- Power module with separate internal air channel which hot air drives directly towards heat sink without distressing the PCB’s and other internal sensitive components, improving the components service life and UPS reliability
- Dual system control card and dual DSP control prevents single failure point.

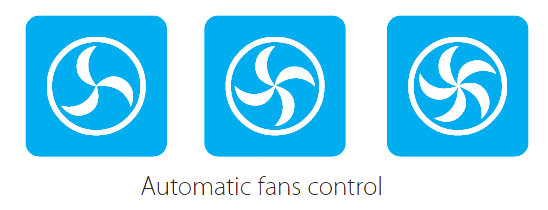

- Intelligent fan control and redundant design for energy saving: 25% load can be driven when 2 fans fail and 50% load when 1 fan fails.
- Integrated with input, output, bypass breaker and manual bypass switch for better protection of system.
- All-round conformal coating to all PCB boards, protect electronics from environmental effection and corrosion.
- Standard dust filter protect UPS placed in dusty environment.
- Local and remote EPO for better safety.
- Cold start function which allow UPS start on battery when grid is available.
- Start-up delay function, to sequentially restart the rectifiers of each power modules and UPS system when several system parallel once the mains power supply is restored.
- Bus synchronization control function provides reliable high power for dual bus application.
Green Power

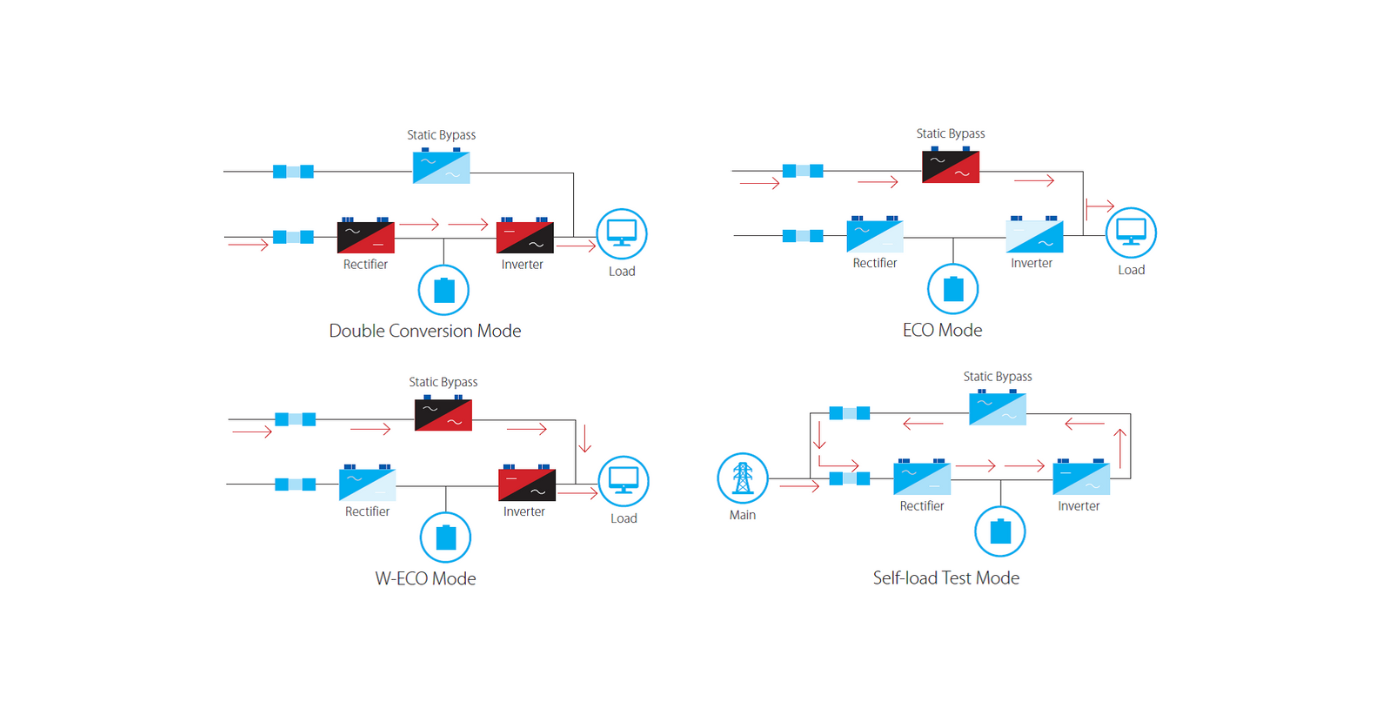

- Latest generation IGBT and three level technology, Low harmonic, high efficiency, effectively energy-saving.
- Three level technology, Low harmonic, high efficiency, effectively energy-saving.
- High efficiency in online mode (>97%) reduces heat dissipation and limits power consumption costs.

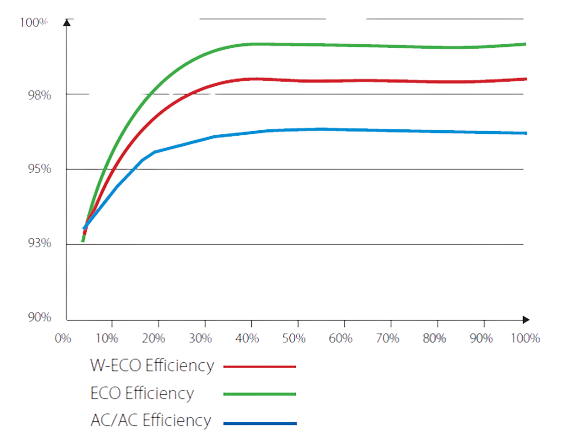

- W-ECO mode could reach 98.5% efficiency, THDi below 5% and transfer time below 4ms to reduce TCO.
- ECO mode efficiency up to 99.2% lead to significant cost reduction.
- THDi≤2% and input power factor 0.99 reduce the pollution to grid and reduce upstream investment costs

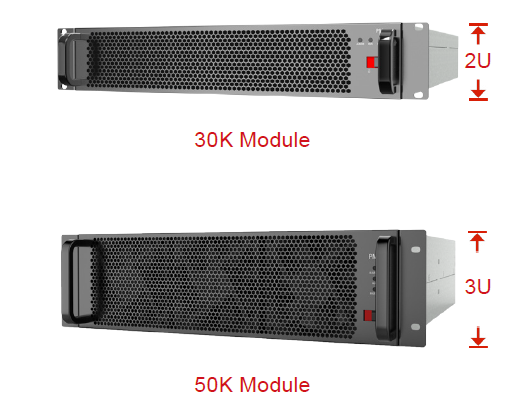

- 2U 30KW power module make sure utility output power (kVA=kW) to maximize power availability and high power density
- 3U 50KW power module make sure utility output power (kVA=kW) to maximize power availability and high power density.
- Self-load test function, easy debugging and easy onsite test during commissioning without using costly temporary loads, cabling and breakers for energy saving.

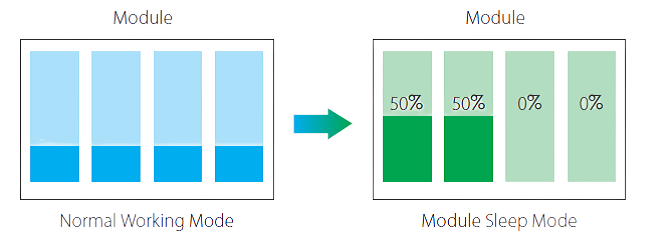

- Intelligent sleep mode which UPS module sleep in random keep maximum efficiency and energy saving.
- Advanced parallel expansion technology, support 8 units up to 960KW in parallel, single /parallel system compatible for CP30-120.
- Advanced parallel expansion technology, support 4 units up to 2.4MVA in parallel, single /parallel system compatible for CP500-600.
Intelligent Management

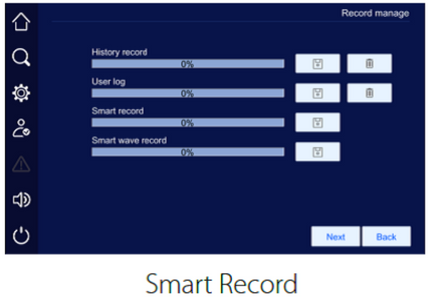

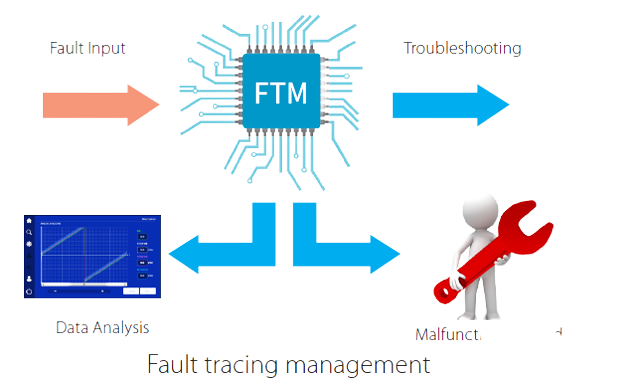

- Fault Trace Management (FTM) for convenient failure analysis (200ms waveform record before & after of the fault point) which easily figure out faulty point.
- Intelligent battery charging prolong the service life of batteries.
- Intelligent battery management and multiple setting, 30-46 pcs batteries per string allow customers to get the faulty battery out instead of replacing it.
- Full asset management record the spare parts replacement, timeline and service people.
- Cabinet temperature detect and pre-notification which prevent over temperature.
- Key components pre-alarm function which precaution the system fault.
- Smart programmable dry contact which have 6 input dry contact and 3 output dry contact, which input dry contact have more than 6 functions and output dry contact have 11 functions allows to settable at site.
- Smart generator mode which allow UPS sent signal to turn on and off generator, also taking part power from battery to compensation generator capacity.
- Self-deducting function which save the preventive service time.
- Common battery bank on parallel mode.
- Frequency converter function (60Hz to 50Hz or 50Hz to 60Hz).
- VRLA and Lithium battery compatible design.
User-friendly Interface
- User-friendly double physical ON/OFF button design to avoid false operation.
- User-friendly graphical interface with Single-line mimic diagram showing system status.

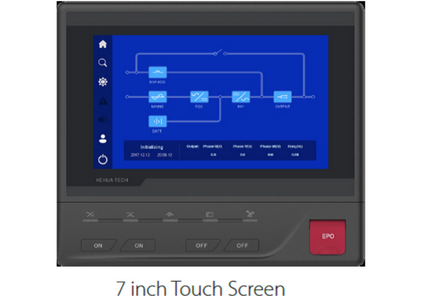

- Colorful 7 inch touch screen with LED Indicators, ensure comprehensive and visualized information display.

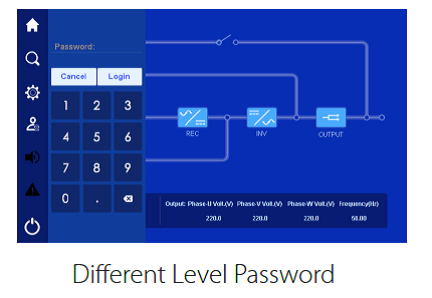

- High security access with separate password levels for users, technician and service engineers.
- Large data storage capacity,10000pcs events logs.
- Support firmware online update, one time update for touch screen, power unit, bypass unit and extended card.
- Main unit display allow to check the information of each UPS status during parallel mode.

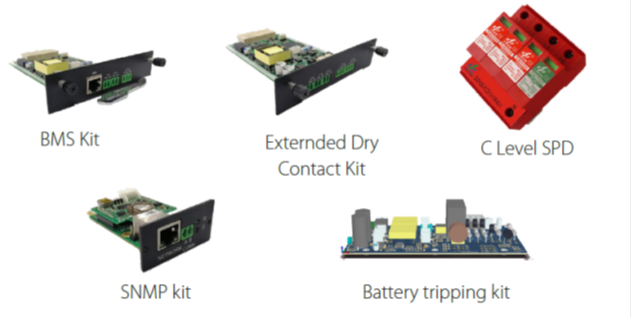

- Communication card: SNMP
- Expanded dry contact kit( 3 in 2 out)
- BMS kit for lithium battery communication
- Top cable Kit
- KEHUA Modular Lithium battery
- Intelligent Battery Monitoring System
- Battery tripping kit
- N+X in parallel
- Input isolation transformer
- SPD: C Grade
- Battery Charge Temperature Compensation
|
Model |
CELTAPro 30-120 |
|
|
Power Module |
CP-30 |
|
|
Input |
||
|
Voltage Range (Vac) |
3Φ4W+PE,380/400/415 L:L 138~485 |
|
|
Input Wiring |
3Ph+N+PE |
|
|
Input Frequency (Hz) |
40-70 |
|
|
Bypass Voltage Range (Vac) |
-15% (-20%/-30% optional) ~+15%(+10% /+20% optional) |
|
|
Power Factor |
≥0.99 |
|
|
THDi at full Linear load |
<3% |
|
|
Phase |
3Φ4W+PE |
|
|
Battery |
||
|
Battery (Vdc) |
±192 (±168~±276 settable) |
|
|
Charging Current (A) |
N×10 Maximum (N = the number of power module) |
|
|
Output |
||
|
Power Module (kVA) |
30 |
|
|
Power module Number |
4+1(N+1) |
|
|
System Capacity (kVA) |
120 |
|
|
Power Factor |
1 |
|
|
Voltage (Vac) |
3Φ4W+PE,L-L:380,400,415 ±1% |
|
|
Frequency (Hz) |
50/60± 0.2% (battery mode) |
|
|
Three Phase Difference |
True sine wave，≤2 degrees |
|
|
THDv |
≤1% (linear load, full load); ≤4% (nonlinear load, full load) |
|
|
System Efficiency (MAX) |
97% |
|
|
Overload Capacity |
101-105% Long run, 106-110% load for 60 minutes, 111%-125% load for 10 minutes, 126%-150% load for 1 minute, over 150% load transfer to bypass |
|
|
Overall Specifications |
||
|
Display |
7 inch Touch screen+ LED+ Physical buttons |
|
|
Alarm |
Low battery, abnormal AC input, UPS failure, etc |
|
|
Protection |
Low battery, overload, short-circuit and over temperature, etc. |
|
|
Relative Humidity |
0~95%, no condensation |
|
|
Communication Function |
RS232, RS485,Dry contact, MODBUS, SNMP (optional) |
|
|
Breakers |
input, output, bypass and maintenance bypass switch |
|
|
Altitude(m) |
0~2000, no derate |
|
|
Noise (dB) |
65 |
|
|
Storage Temperature (ºC) |
-40~70 |
|
|
Operating Temperature (ºC) |
0~40 |
|
|
Power Module Dimension (W×D×H)(mm) |
500×700×86(2U) |
|
|
Cabinet Dimension(W×D×H)(mm) |
600×860×2000 |
|
|
Weight (kg) |
Frame |
162 |
|
Power Module |
27 |
|
|
Bypass Module |
17 |
|
|
Model |
CELTAPro 50-600 |
|||||
|
Power Module |
CP-50 |
|||||
|
|
CP-200 |
CP-300 |
CP400 |
CP-500 |
CP600 |
|
|
Input |
||||||
|
|
|
|
|
|
|
|
|
Voltage Range (Vac) |
3Φ4W+PE,380/400/415 L:L 138~485 |
|||||
|
Input Wiring |
3Ph+N+PE |
|||||
|
Input Frequency (Hz) |
40-70 |
|||||
|
Bypass Voltage Range (Vac) |
-15% (-20%/-30% optional) ~+15%(+10% /+20% optional) |
|||||
|
Power Factor |
≥0.99 |
|||||
|
THDi at full Linear load |
<3% |
|||||
|
Phase |
3Φ4W+PE |
|||||
|
Battery |
||||||
|
Battery (Vdc) |
±240 (±180~±276 settable) |
|||||
|
Charging Current (A) |
N×10 Maximum (N = the number of power module) |
|||||
|
Output |
||||||
|
Capacity (kVA) |
200 |
300 |
400 |
500 |
600 |
|
|
Power Factor |
1 |
|||||
|
Phase |
3Φ4W+PE |
|||||
|
Waveform |
sine wave |
|||||
|
Voltage (Vac) |
L-L:380,400,415 ±1% |
|||||
|
Frequency (Hz) |
50/60± 0.2% (battery mode) |
|||||
|
Three Phase Difference |
≤2 degrees |
|||||
|
THDv |
≤1% (linear load, full load);≤3% (nonlinear load, full load) |
|||||
|
Static Bypass Transfer Time |
0 |
|||||
|
System Efficiency(MAX) |
97% |
|||||
|
Parallel Mode |
Advanced no-master-slave parallel technology, N+1 redundancy |
|||||
|
Overload Capacity |
101-105% Long run, 106-110% load for 60 minutes, 111%-130% load for 10 minutes, 131%-150% load for 1minute, over 150% load transfer to bypass. |
|||||
|
Overall Specifications |
||||||
|
Display |
7 inch Touch screen+ LED+ Physical buttons |
|||||
|
Operating Temperature (ºC) |
0~40 |
|||||
|
Storage Temperature (ºC) |
-40~70 |
|||||
|
Relative Humidity |
0~95%, no condensation |
|||||
|
Communication Function |
RS485, RS232, dry contact (SNMP optional) |
|||||
|
Noise (dB) |
<70 |
|||||
|
Power Module Dimension (W×D×H)(mm) |
500×700×130 |
|||||
|
Power Module Weight (kg) |
33 |
|||||
|
Cabinet Dimension(W×D×H)(mm) |
600×860×2000 |
1200×860×2000 |
||||
|
Weight (kg) |
Frame |
224 |
236 |
427 |
||
|
Bypass Module |
19 |
25 |
31 |
|||
